1500C Max Service Temp High Purity SiC Customized Size Silicon Carbide Heater SIC Heating Element

Name: 1500C Max Service Temp High Purity SiC Customized Size Silicon Carbide Heater SIC Heating Element
Brand: KEGU
Price: 200 USD

Quality 1500C Max Service Temp High Purity SiC Customized Size Silicon Carbide Heater SIC Heating Element wholesale

Model Number : Customizable

Material : SiC

Composition:SiC : ＞85%

Color : Black

Density : 2.5~2.6g/cm³

Max. Service Temp : 1380℃

Flexural Strength : 70-90 MPa

Size : Customized

Heat Conduction : 23.26 W/(m·℃)

Resistivity : 1000～2000 Ω·mm2/m

Tensile Strength : 39.2～49 MPa

Max. Service Temp. : 1500℃

Linear Thermal Expansion Coefficient (20-1500℃) : 5×10⁻⁶/℃

Electrical Resistivity : 1000~2000Ω·mm²/m

Brand Name : KEGU

Place of Origin : China

Price : 200-500 yuan/kg

Payment Terms : L/C,D/A,D/P,T/T,,

Supply Ability : 2,000 pcs/month

Packaging Details : Strong wooden box for Global shipping

Contact Now

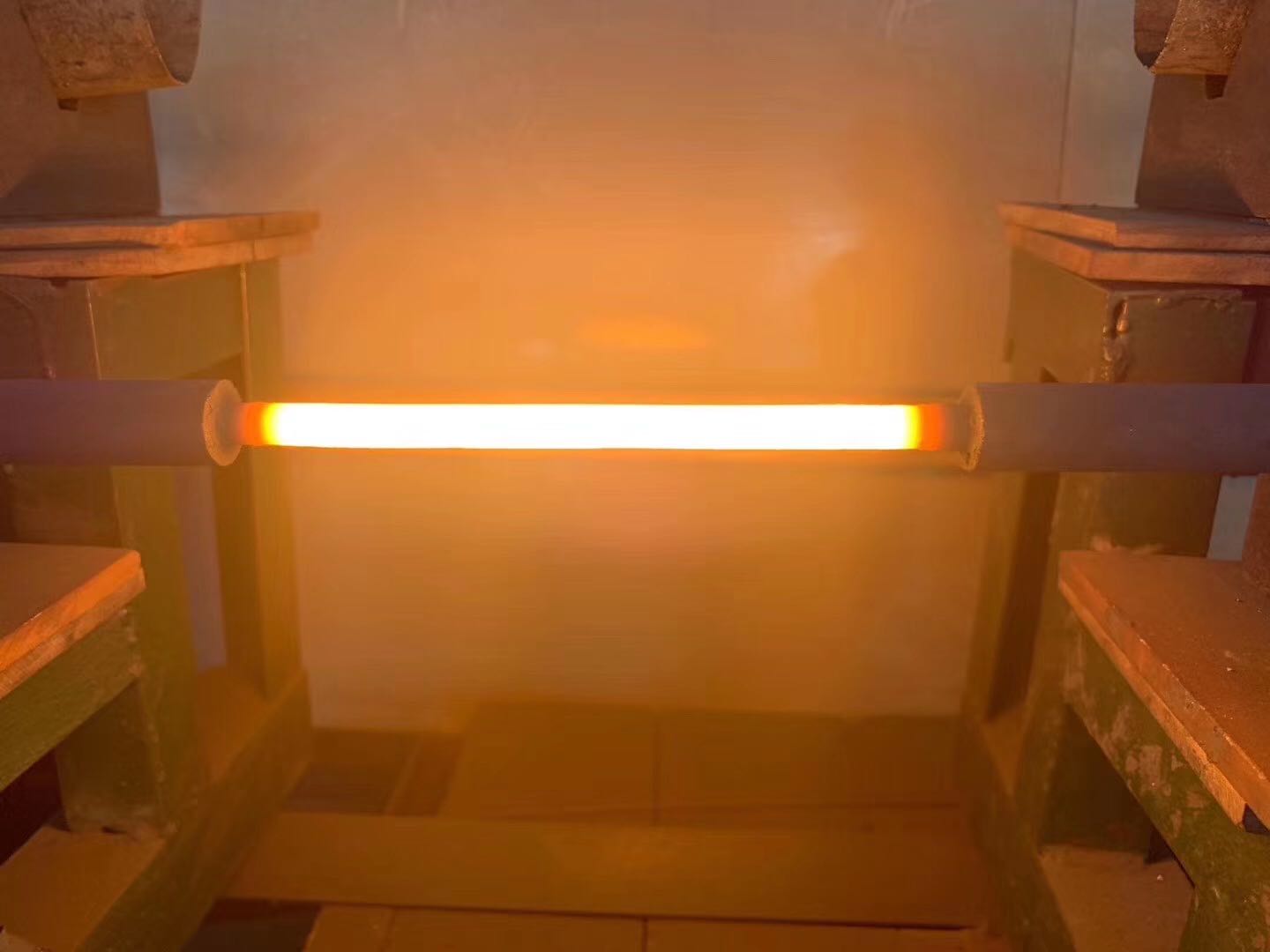

1400°C - 1500°C Industrial Silicon Carbide (SiC) Heating Elements

Silicon Carbide (SiC) heating elements are non-metallic high-temperature electric heating components manufactured from selected high-purity green silicon carbide. These elements are formed into blanks and silicon crystals at extreme temperatures of 2400°C, making them suitable for furnace applications ranging from 600°C to 1600°C. They are widely utilized in various industrial heating applications including glass manufacturing, chemical processing, and electronic materials production.

Available Configurations

To meet diverse market requirements, we produce multiple types of silicon carbide rods with the following specifications:

• Diameter: 8mm to 60mm
• Length: 300mm to 450mm

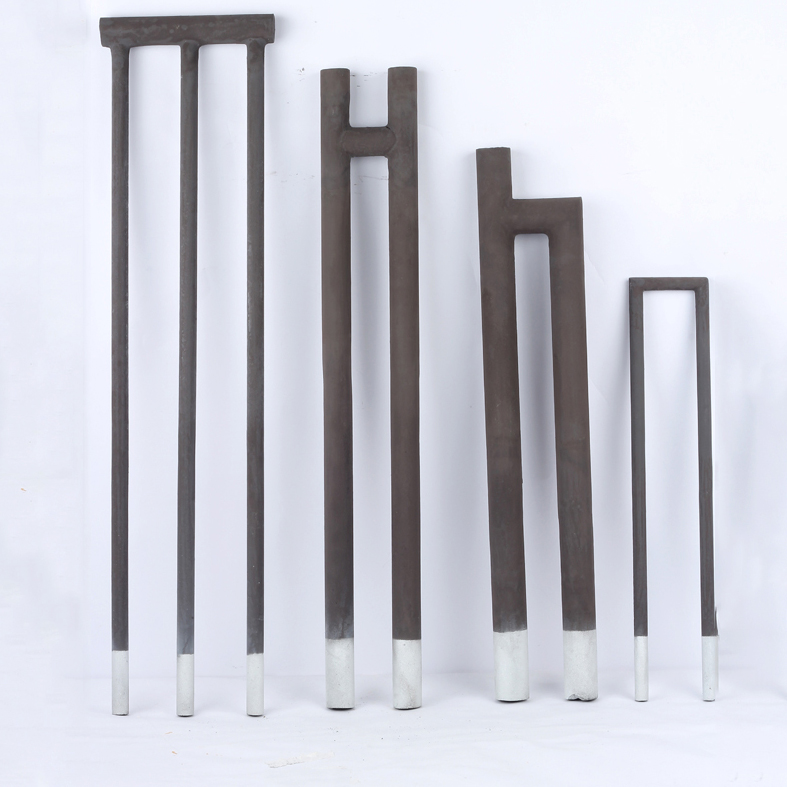

• Types: Equal diameter, groove type, U-type, gun type, and custom configurations for glass electric heating applications

Key Features & Advantages

1 Maximum working temperature of 1600°C

2 Rapid temperature rise with stable performance and extended operational lifespan

3 Silent operation with zero air pollution emissions

4 Simple installation and minimal maintenance requirements
